AIWA AX-7500 and AD-6500 advert “Meant for Each Other” (1977)
Meant for Each Other

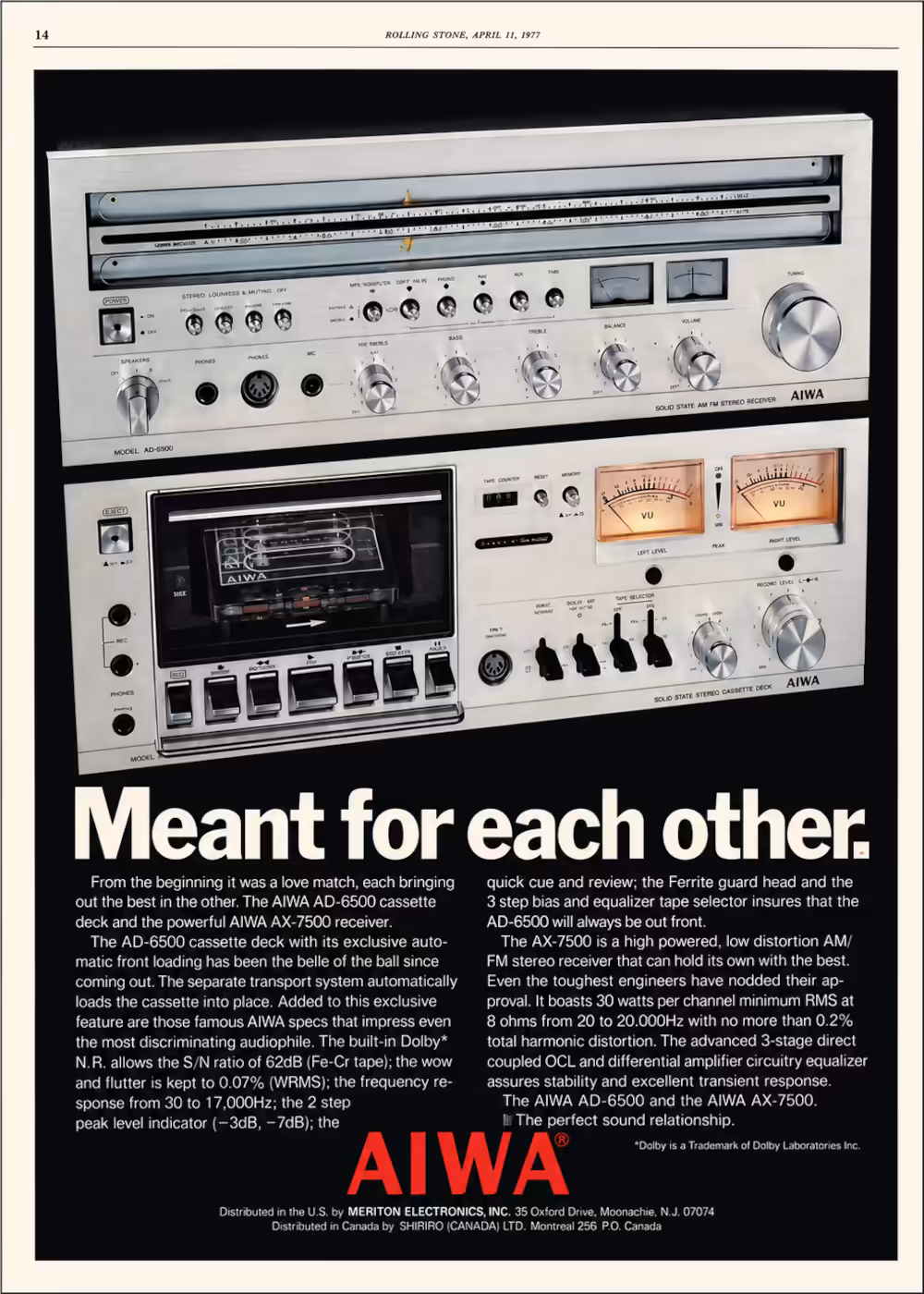

Published in the 21 April 1977 issue of Rolling Stone, this AIWA advertisement presents the AIWA AX-7500 stereo receiver and AIWA AD-6500 cassette deck as a carefully matched high-fidelity system. The headline, “Meant for each other”, turns the pairing into a mechanical love story: two substantial silver-faced components designed to look, operate and perform as one.
The advertisement is particularly interesting because it appeared in a music magazine rather than a specialist electronics publication. AIWA was therefore not merely addressing engineers or dedicated hi-fi hobbyists. It was presenting serious audio equipment directly to people who cared about records, musicians and the experience of listening. The message was that better music reproduction required more than a fashionable stereo cabinet. It required carefully engineered components.
The AIWA AX-7500 Stereo Receiver
The upper component is the AIWA AX-7500, described as a high-powered, low-distortion AM/FM stereo receiver. Its wide analogue tuning scale, large volume control, separate bass and treble adjustments, balance control and twin meters give it the purposeful appearance expected of a substantial 1970s receiver.
AIWA claimed a minimum output of 30 watts per channel into 8 ohms from 20 Hz to 20,000 Hz, with no more than 0.2 per cent total harmonic distortion. Those figures were intended to communicate usable full-range performance rather than an impressive output measured under unusually favourable conditions. The advertisement also draws attention to the receiver’s three-stage direct-coupled OCL amplifier and differential amplifier circuitry, promising stability and transient response as well as raw power.
The AIWA AD-6500 Cassette Deck
Below the receiver sits the AD-6500, one of AIWA’s more distinctive cassette decks of the period. Its automatic front-loading mechanism places the cassette behind a large window, where the transport remains visible as it moves the tape into position. This made cassette loading part of the experience rather than something hidden behind a conventional door.
The deck includes large illuminated VU meters, Dolby noise reduction, separate recording-level controls and a three-position bias and equalisation selector. AIWA quoted a signal-to-noise ratio of 62 dB using ferric-chrome tape, wow and flutter of 0.07 per cent WRMS, and a frequency response extending from 30 Hz to 17,000 Hz. A two-step peak-level indicator provided additional assistance when setting recording levels.
Hi-Fi as a Complete Visual System
The strongest part of the advertisement is its presentation of the two components together. Their brushed-metal faces, black divisions, circular controls and analogue meters form a coherent visual system. Even before reading the specifications, the buyer could see that the receiver and cassette deck belonged together.
This was an era when audio equipment was expected to remain visible in the living room. Controls were large, functions were clearly labelled and the internal activity of the machine was celebrated through illuminated meters and exposed cassette mechanisms. The equipment did not attempt to disappear. It invited the owner to operate it.
The advertisement therefore preserves more than the specifications of two AIWA components. It captures a period when hi-fi was marketed as a combination of engineering, physical interaction and domestic theatre—the receiver and cassette deck not simply connected by cables, but, as AIWA declared, meant for each other.
Curator's Notes
One aspect of this advertisement always makes me smile. Looking at the model numbers in 1977, I would probably have assumed that the AX-7500 receiver was the flagship, while the AD-6500 cassette deck was already one generation behind. Consumers have long been conditioned to believe that bigger numbers mean newer or better products.
Of course, that is not how hi-fi manufacturers always named their equipment. Product ranges often evolved independently, with receivers, cassette decks and turntables following their own numbering schemes. The AD-6500 was simply AIWA's premium front-loading cassette deck at the time, designed to complement the AX-7500 both visually and technically, despite the lower model number.
It serves as a useful reminder that model numbers rarely tell the whole story. When collecting vintage hi-fi today, I pay far more attention to the engineering, features and intended market position than to the digits printed on the front panel. In this case, AIWA's headline says it best—the AX-7500 and AD-6500 really were meant for each other, regardless of what their model numbers might suggest.
Reader Guide
The following material expands on the terminology, historical context, technical concepts, and related reading connected to this article.
Glossary
- Loudness
- A compensation circuit that boosts low and high frequencies when listening at low volume. Human hearing becomes less sensitive to bass and treble as the sound level decreases, making music seem thin. Engaging the Loudness control restores a more balanced and natural sound, particularly during late-night listening or background music sessions.
- VU Meter
- Short for Volume Unit Meter, a VU meter provides a visual indication of the average audio recording or playback level. On cassette decks it helps users adjust the recording level so music is captured with maximum clarity while avoiding distortion caused by excessive signal levels. The large illuminated analogue meters became an iconic feature of premium hi-fi equipment during the 1970s.
- Phono
- The dedicated input for a record player (turntable). Unlike other audio sources, a magnetic phono cartridge produces a very small electrical signal and requires specialised amplification together with RIAA equalisation to restore the correct tonal balance. A turntable connected to an AUX input would sound extremely quiet and lack bass because this equalisation would not be applied.
- Mic Mixing
- A feature that allows one or more microphones to be blended with the main music source. Popular in the 1970s for home entertainment, it enabled sing-alongs, announcements, language practice, or amateur recording without requiring a separate mixing console. On higher-end receivers, microphone level could often be adjusted independently of the music volume.
- Tape Selector
- A switch used to optimise recording and playback for different cassette tape formulations, typically Normal (Type I), Chrome (Type II), Ferrichrome (Type III), and Metal (Type IV). Each tape type required different recording bias and equalisation characteristics to achieve the best frequency response, lowest distortion, and greatest dynamic range. Correctly setting the Tape Selector was an important part of obtaining high-quality cassette recordings.
Related articles…
References
- Rolling Stone Magazine, 11 April 1977, page 14
- AIWA AX-7500 Solid State Integrated Amplifier - AIWA specification page
- AIWA AD-6500 Solid State Cassette Deck - AIWA specification page
