XB-70 Valkyrie Mach 3 experimental bomber

Created by North American Aviation, this historic recount takes you behind the scenes of the groundbreaking flight test program for the XB-70 Valkyrie at Edwards AFB in California. Witness the exhilarating first flights at supersonic speeds and the meticulous tests leading up to the legendary Mach 3.0 milestone—three times the speed of sound, reaching a staggering 2,200 miles per hour. Discover rare insights into the jet's breathtaking supersonic flight, the innovative variable wing geometry in action, and the dramatic fire incident during landing. The XB-70 Valkyrie epitomizes the pinnacle of American aerospace engineering. Experience the thrill and technological prowess of one of history’s most remarkable aircraft.

Introduction

Imagine a plane that could travel at three times the speed of sound, reaching a mind-boggling 2,200 miles per hour. The XB-70 Valkyrie wasn't just a product of cutting-edge 1960s technology—it was a glimpse into a future where the sky was no longer the limit. This sleek, white bomber, with its massive, imposing presence, was designed to outrun enemy interceptors and deliver devastating payloads, embodying the pinnacle of Cold War-era innovation and ambition.

One of the most fascinating aspects of the Valkyrie was its unique variable geometry wingtips. As the aircraft prepared to break the sound barrier, its wingtips would fold downward, reducing drag and increasing stability. This mechanical ballet was not just a feat of engineering but a testament to the innovative spirit driving the project. However, this high-speed performance came with quirks, such as the peculiar phenomenon of paint flaking off during supersonic flight, a small price to pay for pushing the boundaries of what was possible.

But the Valkyrie's story is as much about triumph as it is about tragedy. The concept of wave riding, where the plane would surf on the shockwaves it generated, was revolutionary. Yet, the program was abruptly halted after a catastrophic mid-air collision, marking the end of its promising journey. Despite its untimely demise, the XB-70 Valkyrie remains an enduring legend, capturing the imagination of aviation enthusiasts and standing alongside the SR-71 Blackbird as a symbol of human ingenuity and the relentless pursuit of the skies.

XB-70 Valkyrie Test Flight

Note that the video publisher has not endorsed this article. The video is served directly by archive.org from this webpage. Please read archive.org's privacy and copyright policy. The opinions expressed may not reflect the opinion of this site.

There is very impressive footage of the Valkyrie in supersonic flight and a demonstration of the unique variable wing surfaces to reduce drag and improve stability. The screenshot below shows the wings at an almost fully downward position in preparation for a supersonic flight.

Design and Aesthetics

The XB-70 Valkyrie is the epitome of 1960s futuristic design, embodying the era's vision of what the future of aviation could look like. With its sleek, needle-like fuselage and expansive delta wings, the Valkyrie looks like it was plucked straight out of a science fiction novel. The aircraft's sharp lines and minimalist aesthetic were not just about appearances; they were meticulously crafted to reduce aerodynamic drag and optimize supersonic performance. The Valkyrie's design was a bold statement, showcasing the innovative spirit and technological optimism that defined the 1960s.

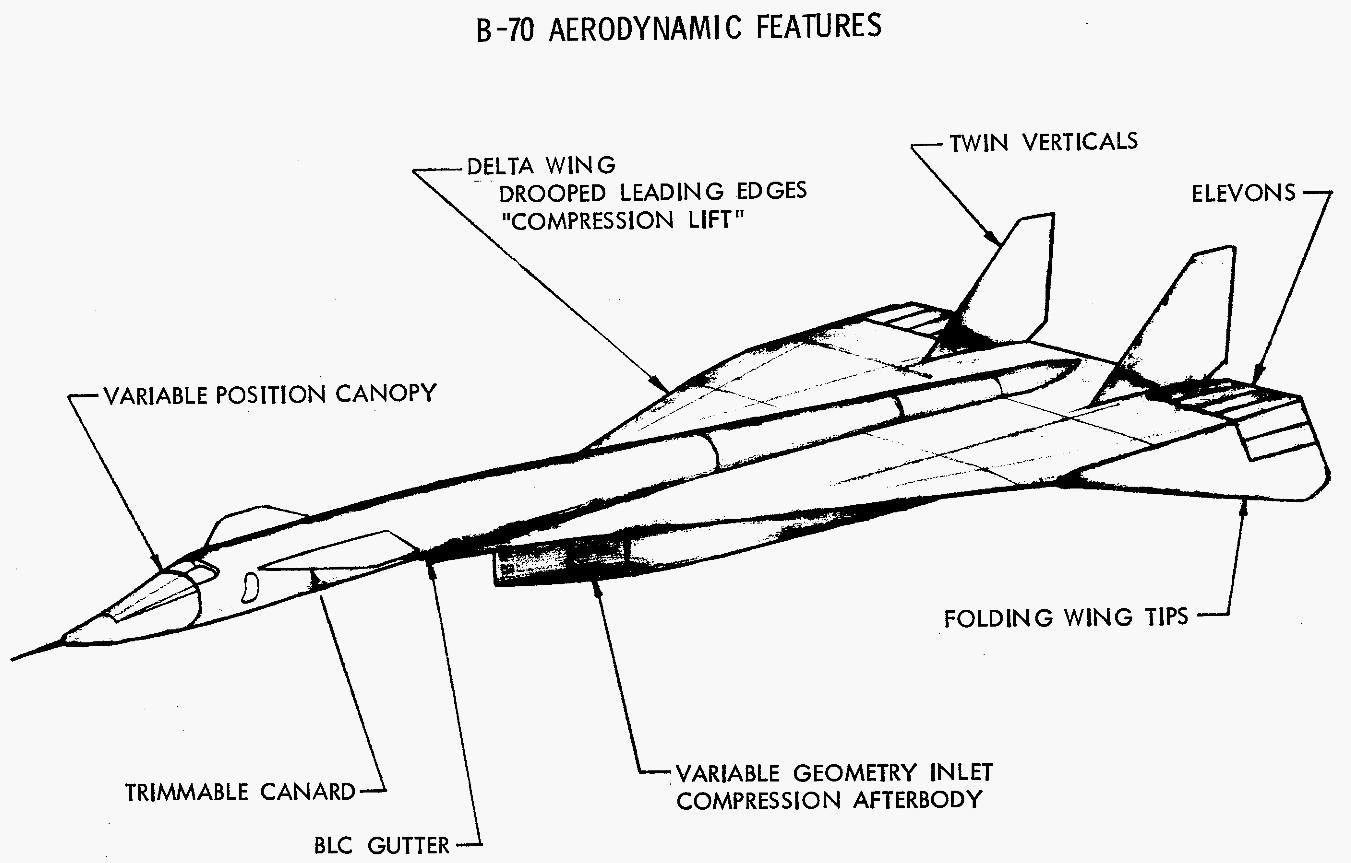

B-70 Aerodynamic Features

When you see the XB-70 in person, its sheer size is absolutely awe-inspiring. Stretching over 185 feet in length with a wingspan of 105 feet, the Valkyrie is massive, dwarfing many of its contemporaries. The aircraft's imposing presence is accentuated by its all-white paint scheme, which was not just for show but served to reflect heat during high-speed flight. This enormous plane, with its sleek, futuristic contours, looks as if it's perpetually in motion even when standing still. Its unique aesthetic appeal lies in its blend of brute strength and refined elegance, making it a true marvel of aerospace engineering.

More than just a technological marvel, the XB-70 Valkyrie stands as a symbol of cutting-edge innovation and forward-thinking design. It encapsulates the era's daring ambition to push beyond the known boundaries of speed, altitude, and engineering. The Valkyrie's design was driven by a need to achieve unprecedented performance, resulting in an aircraft that was both beautiful and functional. This bomber was not only a testament to the engineering prowess of its creators but also an iconic representation of humanity's relentless pursuit of progress. The Valkyrie's legacy endures, inspiring future generations of engineers and aviation enthusiasts with its visionary design and technological breakthroughs.

Secrets of the Variable Geometry Wing

One of the most captivating features of the XB-70 Valkyrie is its variable geometry wingtips, a testament to the innovative engineering behind this aircraft. These wingtips could be mechanically lowered by up to 65 degrees during supersonic flight, a process that reduced drag and increased stability at high speeds. This ingenious design allowed the Valkyrie to "ride" its own shockwaves, a technique known as compression lift, which significantly enhanced its aerodynamic efficiency. The wingtips' ability to change their angle in flight was not only a technical marvel but also a visually striking element that added to the aircraft's futuristic appeal.

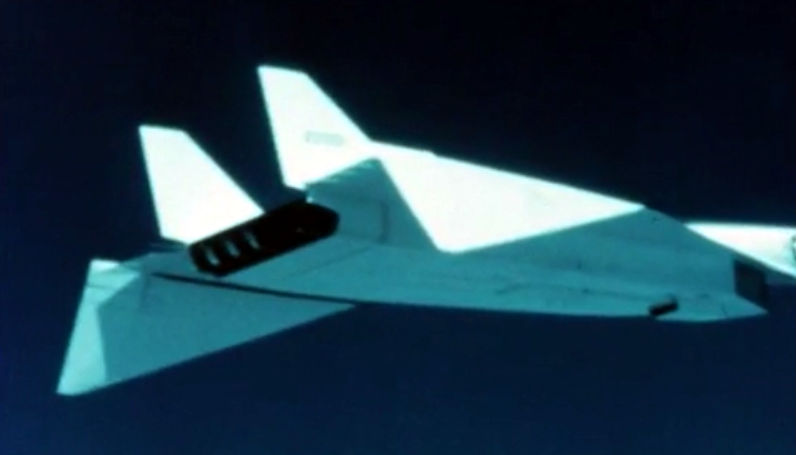

B-70 Variable wing edge geometry in flight during a demonstration in California
Valkyrie's unique variable wingtip design

The secret behind the variable geometry wing lies in its ability to adapt to different flight conditions seamlessly. At lower speeds, the wings would remain flat, optimizing lift and control. However, as the Valkyrie approached Mach 3.0, the wingtips would gradually fold downward, transforming the aerodynamic profile of the aircraft to handle the stresses of supersonic flight better. This flexibility made the Valkyrie exceptionally efficient at both subsonic and supersonic speeds, showcasing the cutting-edge technology and forward-thinking design principles of its era. The variable geometry wing was a bold experiment in aerodynamics, pushing the boundaries of what was possible and leaving an indelible mark on the history of aviation engineering.

Compression lift is a relatively rare and advanced aerodynamic technique, and the XB-70 Valkyrie is one of the few aircraft to have utilized it extensively. However, there are a couple of other notable examples where similar principles have been applied:

Lockheed SR-71 Blackbird ✈️
While the SR-71 primarily relied on its unique chines and overall aerodynamic shape for high-speed performance, it also benefited from compression lift at extreme speeds. The aircraft's design allowed it to "ride" on the shockwaves generated at its nose and engine nacelles, providing additional lift and stability at speeds above Mach 3.

Concorde ✈️
The supersonic passenger airliner Concorde utilized a form of compression lift, particularly at the higher end of its operating speed range. The aircraft's delta wing shape was optimized for high-speed flight, allowing it to benefit from shockwave interactions that enhanced its lift-to-drag ratio at supersonic speeds​.

North American A-5 Vigilante ✈️
Another example from the same era as the XB-70, the A-5 Vigilante, also employed aspects of compression lift in its design. Its supersonic performance was aided by aerodynamic features that allowed it to exploit shockwave-generated lift to some degree

Legacy and Enduring Legend

The XB-70 Valkyrie's legacy in aviation history is a testament to human ingenuity and the relentless pursuit of technological advancement. As one of the most ambitious projects of its time, the Valkyrie pushed the boundaries of speed, altitude, and aerodynamics, leaving an indelible mark on aerospace engineering. Its development and operational history provided invaluable insights into supersonic flight, influencing the design and engineering principles of subsequent high-speed aircraft. Despite its short-lived program, the XB-70's innovative concepts, such as variable geometry wingtips and compression lift, have been studied and adapted in various ways, ensuring its influence endures in the annals of aviation.

The Valkyrie's impact on future aircraft designs is profound. Its exploration of high-speed flight dynamics and structural materials set the stage for advancements in both military and civilian aerospace projects. The lessons learned from the XB-70 program directly contributed to the development of aircraft like the B-1 Lancer and influenced various aspects of supersonic and hypersonic flight research. The Valkyrie’s design principles, especially those concerning aerodynamic efficiency and thermal management at high speeds, have continued to resonate in aerospace engineering circles, informing new generations of aircraft development.

In comparison to other iconic aircraft, such as the SR-71 Blackbird, the XB-70 Valkyrie stands as a complementary symbol of Cold War-era aerospace ambition. While the SR-71 excelled in reconnaissance with its stealth and sustained high-speed capabilities, the XB-70 was a marvel of strategic bombing potential and aerodynamic experimentation. Both aircraft embody the peak of 1960s aviation technology and have captivated aviation enthusiasts with their unique capabilities and distinctive designs. The Valkyrie's tragic yet heroic narrative, marked by its catastrophic crash and the program's subsequent cancellation, adds a layer of mythos, enhancing its cult status among aircraft aficionados.

The enduring fascination with the XB-70 Valkyrie is palpable among aviation enthusiasts and historians alike. Its futuristic design, coupled with the ambitious goals it set out to achieve, continues to inspire awe and admiration. The aircraft's story is one of innovation, exploration, and a poignant reminder of the relentless drive to push the limits of what is possible. As a symbol of American aerospace ingenuity, the XB-70 remains an iconic and revered figure in the history of aviation, celebrated for its contributions to science, engineering, and the boundless quest for the skies.

B-70 Valkyrie photo gallery

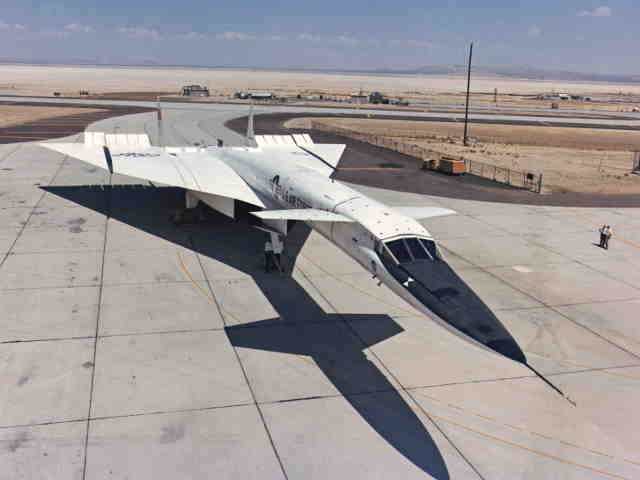

NASA ECN-1814 XB-70 on parked on ramp

XB-70 on parked on ramp

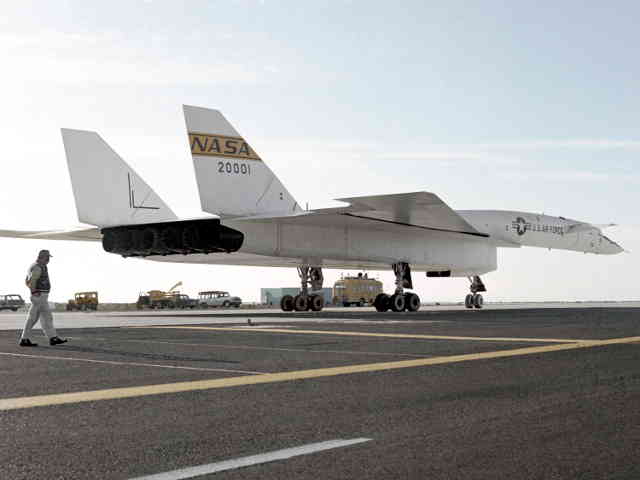

NASA EC68-2101 XB-70 on runway tarmac

XB-70 on runway tarmac

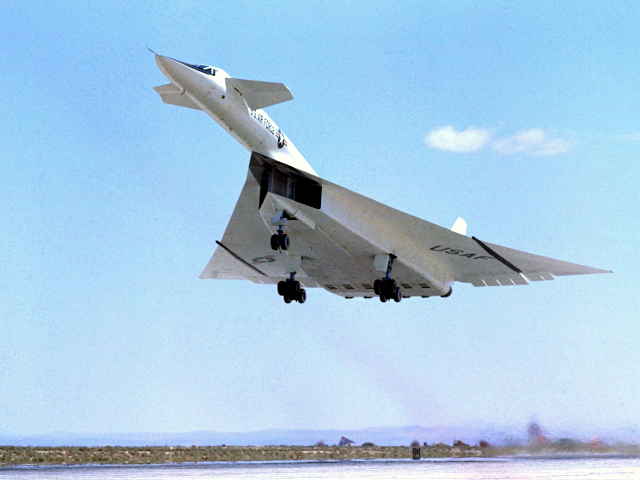

NASA ECN-792 XB-70 Climbs Out after Takeoff

XB-70 Takeoff

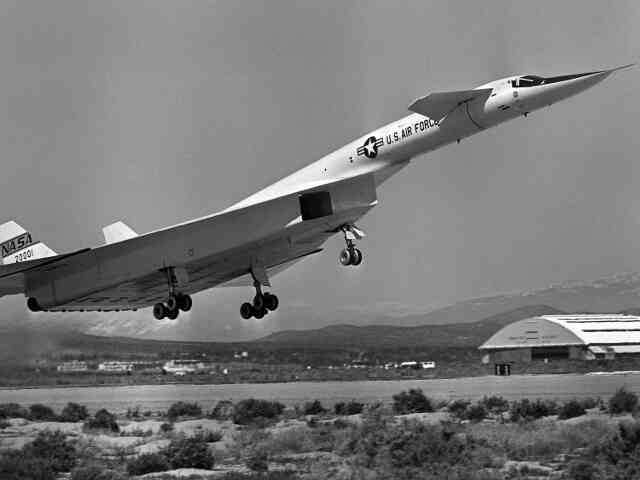

NASA E-16695 XB-70 Takeoff rotation

XB-70 Takeoff rotation

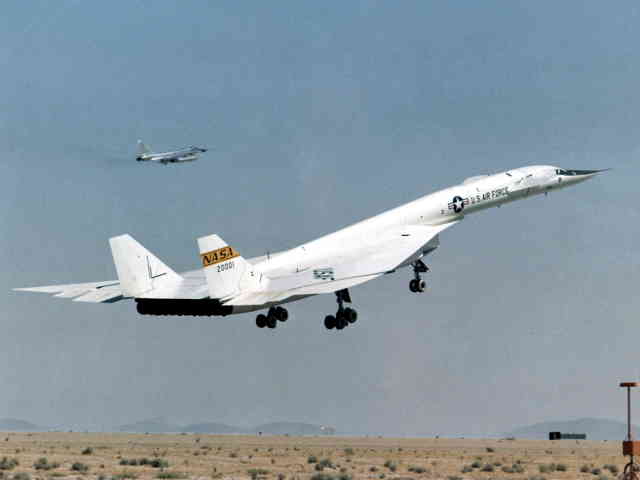

NASA ED97-44244-2 XB-70 Valkyrie with TB-58 Chase

XB-70 Valkyrie with Chase

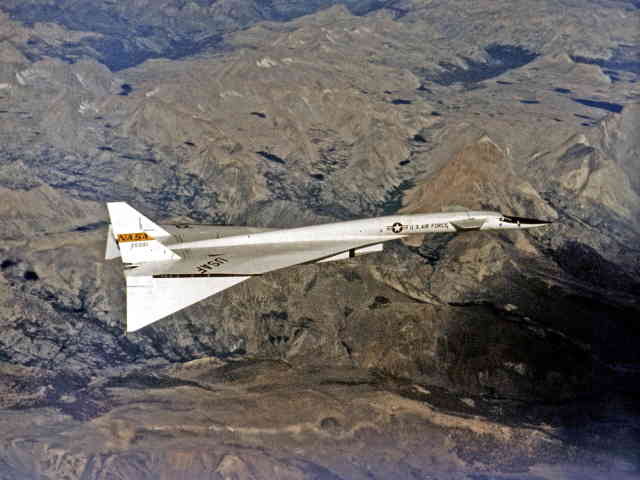

NASA EC68-2131 XB-70 in Cruise Configuration

XB-70 in Cruise Configuration

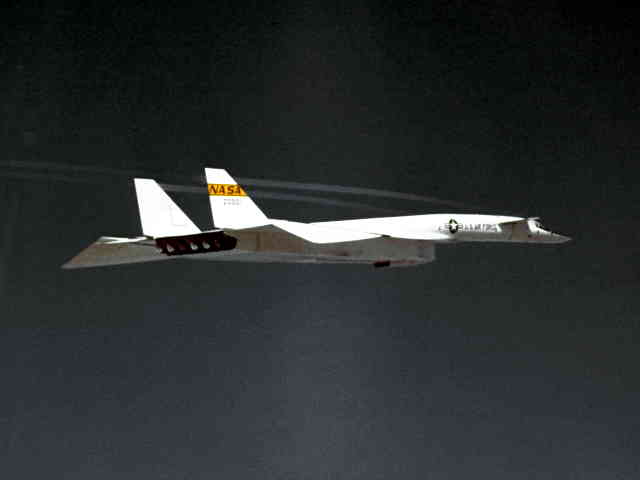

NASA ECN-2128 XB-70 Level Cruise Flight Mode

XB-70 level cruise flight

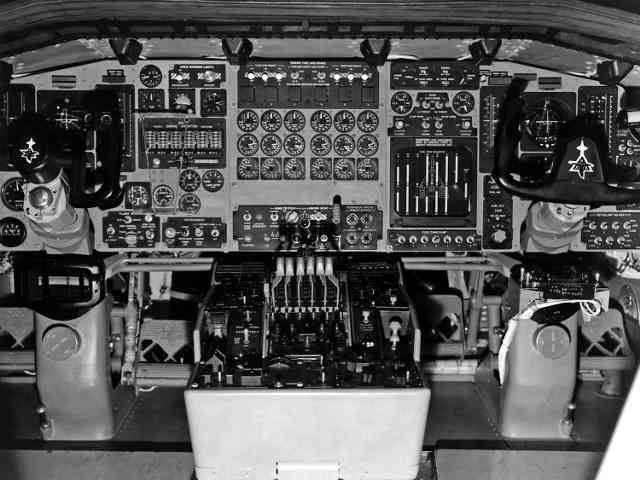

NASA ED97-44244-1 XB-70 Cockpit

XB-70 Cockpit external

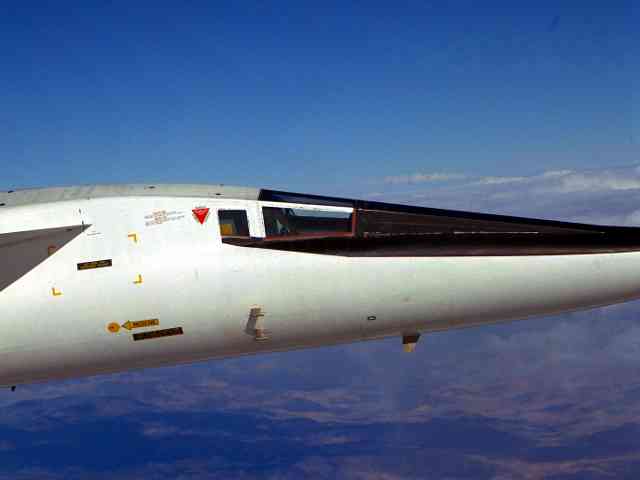

NASA ED97-44244-1 XB-70 Cockpit

XB-70 Cockpit

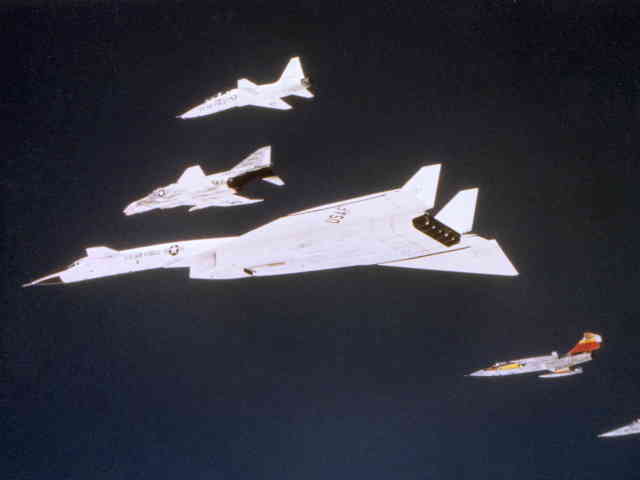

NASA EC84-28218 XB-70 Ill-fated formation flight

XB-70 Ill-fated formation

Angry Alien™ Review

Angry Alien speaks… Ah, the XB-70 Valkyrie, a supersonic relic from the days when fuel consumption was merely an afterthought, and the Cold War justified any expenditure. This behemoth of the skies, designed to outrun any threat with its Mach 3 capabilities, was about as subtle as a supernova in a dark sky. With wings that could bend like the plot of a bad sci-fi flick, it was engineering hubris wrapped in a titanium go-faster stripe. The Valkyrie's ambition soared higher than Icarus, and much like that ill-fated flight, ended in tragedy. Its brief, shining moment in the aerospace limelight was as fleeting as the attention span of the humans marveling at it. Marvelous, yes, but as practical as a chocolate teapot in a star furnace. 🚀👽💥
