Hitachi 505 Analog Hybrid Computer — Functions and Solutions
Updated 18 November 2025
What is a Hybrid Computer?
Hybrid computers combine the best of digital and analog computers to solve difficult equations. In mathematical terms, hybrid computers are best suited to solving a class of problems using differential equations. Hybrid computers are great for solving problems quickly.
Analog hybrid computers are an unusual type of computer that is heavily focused towards analog calculations, such as multi-variable differential equations; perfect for scientific calculations. Input variables and results can be recorded to digital memory for future recall. These hybrid computers had a reputation for using lots of electrical power to run the power amplifiers in each of the function modules.
Analog Computer Advantages
Analog computers are amazingly fast. In simple terms, an analog computer is a signal generator that creates a line or a point. In this respect, analog computing operates at the speed of the electrons passing through a circuit. An interesting implementation of the circuit-based computer was advertised as the GENIAC computer. The GENIAC analog computer was advertised with the tag line, Can you think faster than this machine? Twiddle those knobs and dials and the answer will zero in as fast as you can adjust the variables. The main limit to using analog computers is the level of precision in the result. Users may only achieve, say, three or four digits of precision.
Hitachi 505 Hybrid Computer Operation
The computer basically consists of solid-state DC amplifiers provided with FET chopper circuits. These amplifiers have a 100 V, 20 mA output with low drift and high S/N ratio for high accuracy. Iterative computations are facilitated by special Compiled Operation Modules containing networks used in automatic parameter changing, boundary value problems and other functions necessary in iterative operations.
Function Generator
A large selection of function generators is available for special purposes, including: 3 different fixed breakpoint function generators; 1 variable breakpoint function generator; 2 log function generators; 2X2 function generators; and a new two-variable function generator. The two-variable function generator, in particular, is a novel silicon transistor device featuring 25 non-interacting fixed breakpoints. The completely shielded, color-coded patchboard has been designed with the programmer in mind. Most connections may be made with low-capacitance bottle plugs. Also, a unique method for temporary labeling of the potentiometers is provided.
Programming the Hitachi 505

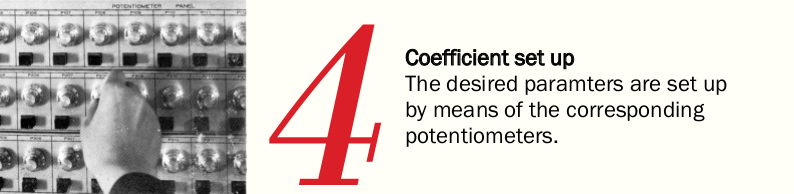

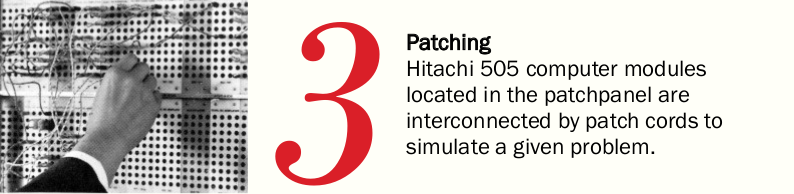

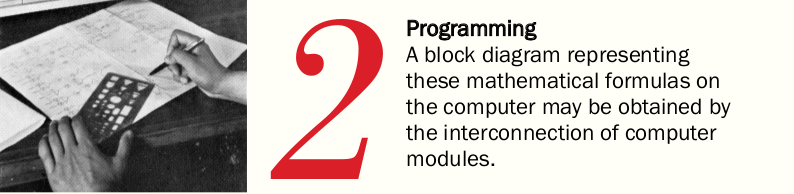

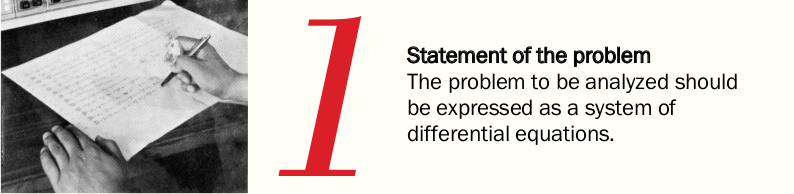

FIVE STEPS IN ANALYSIS OF
PROBLEMS USING THE HITACHI 505

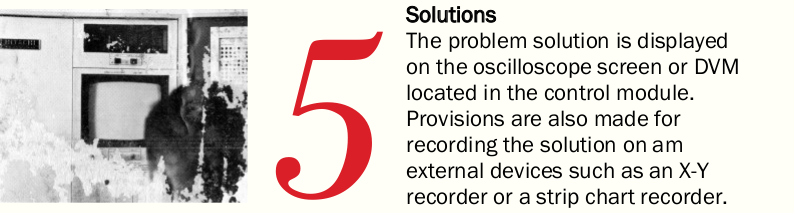

Readout of solutions is obtained with a 4 digit DVM or a 3 channel 9” oscilloscope. The solutions are also available externally for an X-Y plotter or other monitoring devices. The Hitachi 505 furnishes a number of functions that permit efficiency and flexibility over a wide range of applications. A three-channel 9” oscilloscope provides a continuous display of solutions and is arranged so that three solutions may be observed simultaneously.
Editor's Notes
The Hitachi 505 sits at a fascinating crossroads between laboratory instrument and creative tool. While machines like this were originally installed in universities, research labs and industrial control environments, a modern hobbyist could easily repurpose one as a hands-on playground for modelling, sound design and education. With nothing more than patch leads, a small audio amplifier, and an oscilloscope, the 505 becomes a real-time analog “workbench” for exploring equations, testing circuits, and creating signals that you can both see and hear.
Unlike a purely digital system, an analog computer responds continuously and immediately. Twist a knob, repurpose an integrator, or reroute a signal, and the behaviour changes in front of you with no compile step and no code. For the retrocomputing enthusiast, that combination of physical patching, live response and historical hardware makes machines like the Hitachi 505 far more than museum pieces; they are still capable, usable tools that invite experimentation.
Audio Generator / Synthesizer Module
One of the most approachable projects for a hobbyist is to use the Hitachi 505 as an audio signal source and primitive synthesizer. The same integrators, summers and comparators that once solved differential equations can be patched to produce audio-frequency waveforms: slow control voltages at one end of the dial, and audible tones at the other.
A simple example is a function generator patch. An integrator driven by a fixed input voltage produces a ramp or triangle wave, while a comparator can be used to reset or flip the direction of integration, creating a square or pulse waveform. Additional summers can bias or scale these signals, and low-pass configurations can gently round sharp edges toward sine-like shapes. Routed to an external amplifier and loudspeaker, the 505 becomes an experimental tone generator that can demonstrate the relationship between wave shape, frequency and perceived timbre.
More adventurous users can patch feedback networks and coupled integrators to build evolving, quasi-chaotic control voltages, then use those slow signals to modulate the frequency or amplitude of a faster oscillator. What originally served as a serious teaching tool for control theory suddenly doubles as a modular, lab-style synthesizer, ideal for anyone interested in the overlap between early computing, test equipment and electronic music.
Loudspeaker Crossover Modeller (Practical Engineering Project)
Another practical application is to use the Hitachi 505 as a loudspeaker crossover modeller. Traditional crossover design requires calculating the relationships between resistors, capacitors and inductors in order to split audio into low, mid and high ranges. An analog computer is well suited to this task because it can simulate the underlying filter equations directly, allowing the user to experiment with crossover slopes and cutoff frequencies before committing to real components.
By configuring integrator and summer blocks to behave like first- and second-order low-pass and high-pass filters, a hobbyist can patch a virtual crossover network on the 505. A swept input signal (from an external signal generator or from another patch on the machine) is applied to the model, and the resulting outputs are monitored on an oscilloscope or level meter. Adjusting the scaling knobs effectively changes the equivalent values of the “virtual” capacitors and inductors. When the curves on the scope match the desired crossover behaviour, those settings can be translated into concrete component values for a physical speaker network.
This approach turns the Hitachi 505 into a crossover design assistant: a way to visualise filter responses, test alternative alignments (such as Butterworth or Linkwitz–Riley style responses), and develop an intuitive understanding of how small changes in component ratios affect real-world loudspeaker performance.
Practical Analog Logic Blocks
Underpinning all of these experiments are the basic analog function blocks that make a machine like the Hitachi 505 so flexible. A typical user would rely heavily on a small set of building blocks:
- Summers and subtractors — combine signals, form error terms, mix control voltages, and offset waveforms.
- Integrators — model physical processes over time, create ramp and triangle waves, and simulate capacitive behaviour.
- Differentiators and high-pass networks — emphasise changes, extract edges or transients, and approximate inductive responses.
- Comparators and limiters — generate square waves, detect thresholds, and create simple analog “decision” logic.
- Gain and scaling amplifiers — normalise signal ranges, apply coefficients, and adapt internal voltages to external test equipment.
For the modern retrocomputing enthusiast, these blocks are interesting not only as mathematical tools but also as creative primitives. The same summer that adds forces in a mechanical model can mix oscillator voices in a synthesizer patch. The integrator that stands in for a capacitor in a filter model can generate slow control voltages for animating oscilloscope displays. In this way, the Hitachi 505 serves as a bridge between its original role as a serious instructional machine and its modern life as an experimental platform for signal processing, sound generation and hands-on computational history.
Article Definitions
- Analog Computer
- A computing system that represents numerical values using continuously varying voltages or currents. In the context of the Hitachi 505, analog circuits are used to solve differential equations and model physical systems in real time.
- Hybrid Computer
- A system that combines analog and digital computing techniques. The Hitachi 505 uses analog function blocks for continuous mathematical operations, while its digital components handle logic, switching and control functions.
- Operational Amplifier (Op-Amp)
- The fundamental analog building block used throughout the Hitachi 505. By configuring op-amps as integrators, summers, filters, or amplifiers, the machine performs the mathematical operations required for modelling and computation.
- Integrator
- An op-amp configuration that produces the time-integral of its input signal. On the Hitachi 505, integrators are essential for simulating dynamic systems and solving differential equations that describe motion, flow, or oscillation.
- Patch Panel
- The manual interconnection interface used to route analog signals between functional blocks. Users program the Hitachi 505 by connecting cables between inputs and outputs, similar to patching a modular synthesizer or early switching system.
