A different way to read the battlefield

In 1982, Sega's Zaxxon asked arcade players to judge a spacecraft's height as well as its position across the screen. A gap in a wall could look inviting, yet still destroy a ship approaching at the wrong altitude. The angled battlefield gave buildings volume and obstacles height, making spatial judgement part of the shooting.

This page brings together the original arcade sales flyer, a surviving commercial, gameplay footage and the operator's manual. Each offers a different view of the machine: the experience Sega promoted, the decisions players faced and the equipment operators maintained. Read together, they connect the spectacle on the screen with the practical business of running an arcade cabinet.

Selling Zaxxon on screen

A moving image can explain a game in ways a printed flyer cannot. Watch the commercial below with that distinction in mind: how does it introduce the spacecraft, the viewpoint and the action? Compare its presentation with the uninterrupted gameplay further down the page.

The commercial is included as a promotional artefact. Claims that Zaxxon was the first arcade game advertised on television need firmer historical evidence than this surviving clip alone provides.

How the angled view changes play

Zaxxon is commonly described as an isometric shooter. More broadly, its viewpoint belongs to the family of axonometric projections, which represent depth using parallel lines rather than perspective vanishing points. The screen suggests a three-dimensional battlefield while presenting the action through a fixed, angled view.

That distinction matters because the scenery affects how players read danger. A wall opening has a position and a height. Moving sideways towards it solves only part of the problem. The player must also climb or descend to clear it. The on-screen altimeter helps turn that apparent depth into a usable flight path.

The aircraft-style joystick reinforces the task. Players steer across the battlefield and adjust altitude while firing ahead. The challenge comes from combining those actions, particularly when an obstacle demands a height change just as a target invites a shot. A missed alignment can mean a collision even when the route initially looks clear.

Fuel adds another pressure. Destroying fuel tanks replenishes the spacecraft's supply, so shooting installations serves a practical purpose beyond scoring points. Flying high may avoid some ground hazards, but it also takes the ship away from low targets. Staying high for too long over the fortress can draw a homing missile, giving players another reason to vary their altitude.

The Museum of the Game's Zaxxon entry documents these controls and mechanics. They explain the game's appeal more clearly than calling its graphics revolutionary: the viewpoint changes what the player must judge and how the controls must be used.

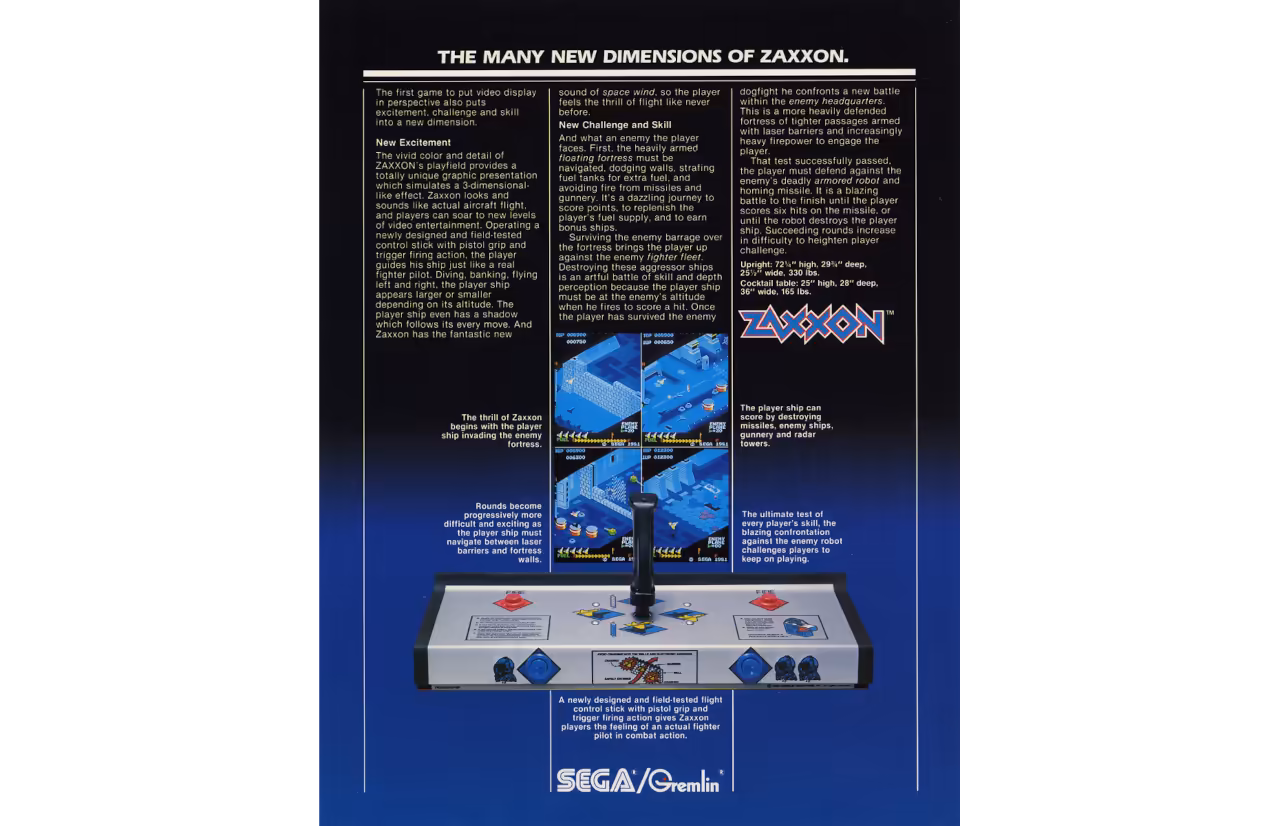

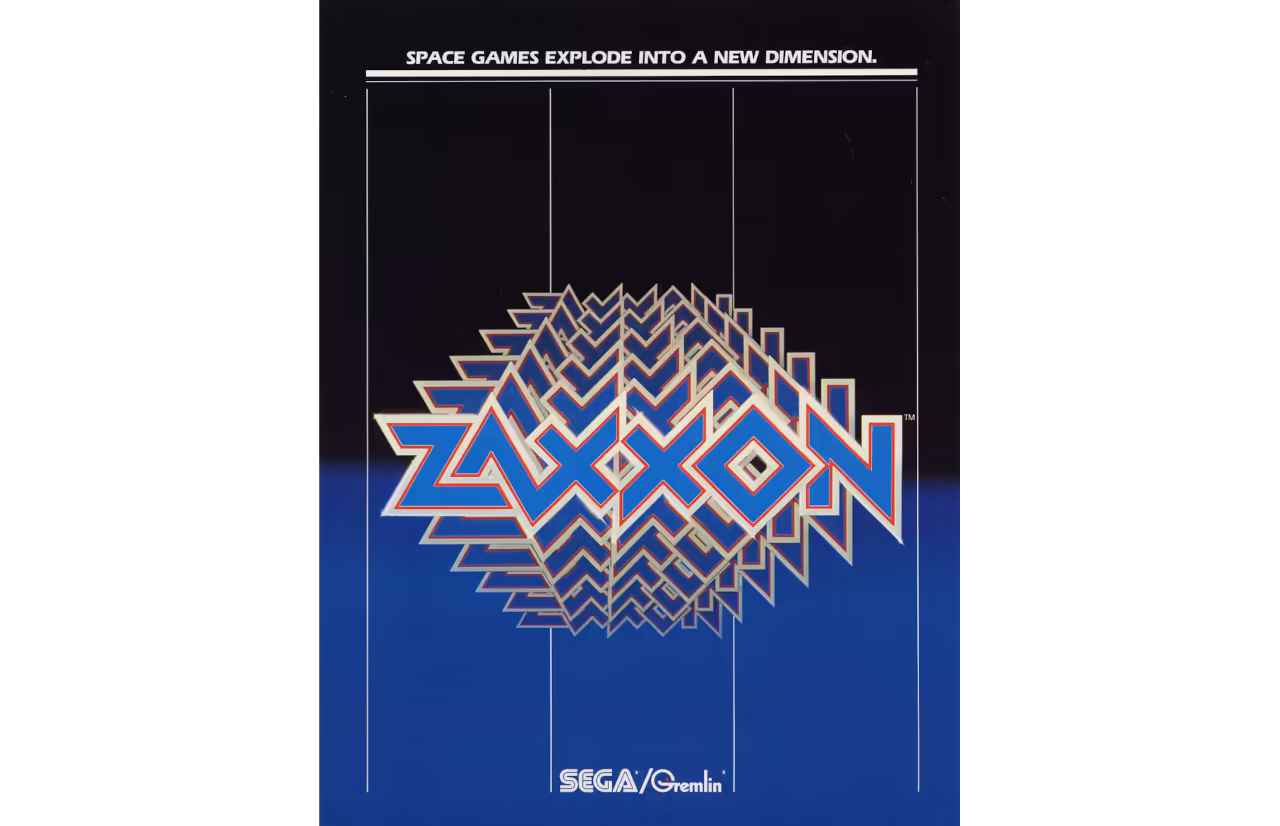

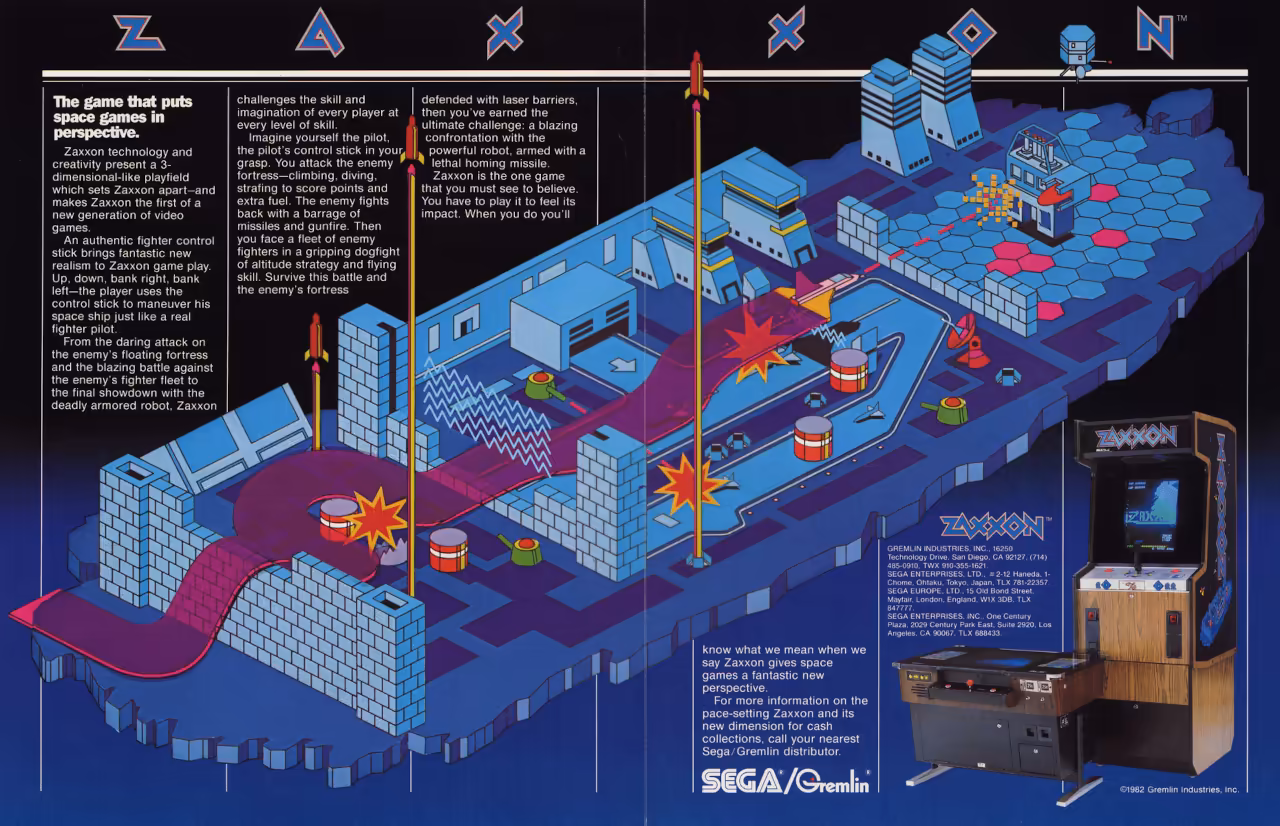

The original arcade sales flyer

An arcade sales flyer addresses two audiences at once. It presents a game that players might want to try, while giving an operator reasons to devote floor space and money to the machine. That makes it a useful companion to gameplay footage. The footage shows the demands of play; the flyer shows how the product was presented for sale.

Read the following scans with three questions in mind. What does the artwork lead you to expect? How does the printed presentation explain a viewpoint that becomes clearer in motion? What information helps a prospective buyer understand the cabinet as a piece of equipment? These questions distinguish a close reading of the promotional material from a general history of the game.

Reading the pitch against the machine

A useful way to examine this material is to separate the promise of flight from the work of flying. A spacecraft and an angled landscape establish the theme, but the controls, altimeter and collision rules determine the experience. The flyer belongs to the first encounter with Zaxxon; the gameplay reveals what a player must learn after inserting a coin.

The operator's manual adds a third perspective. Its maintenance and troubleshooting sections concern the physical machine that delivers that experience. Together, the flyer and manual preserve the two ends of an arcade product's working life: attracting a buyer and keeping the cabinet operating.

Watch the altitude, not just the enemies

In the gameplay footage below, follow the ship's height as it approaches walls and barriers. Then watch where its shots travel. A target can appear nearby on the screen without being at the correct altitude to hit. The useful question is not simply whether the player is aiming left or right, but whether ship, shot and target occupy the same height.

Notice how the fortress sections and open-space combat place different demands on the player. Buildings and walls provide visual landmarks over the fortress. In open space, the targeting indicator helps identify an enemy aligned with the ship's fire. The changing surroundings alter how players judge the same basic controls.

The owner's manual: behind the spectacle

The linked owner's manual, identified as document 420-0724, concerns the arcade machine rather than a home-computer conversion. Its listed contents extend from the game concept and operator options to joystick maintenance, self-test, circuit descriptions, parts and schematics.

That scope makes the manual useful for more than learning the rules. Joystick maintenance connects the flight-style control with a serviceable mechanism. The functional block diagram and circuit sections describe the machine as a system, while the self-test and troubleshooting material address faults. For a historical reader, the contents reveal how much technical support sat behind a few minutes of play.

Collectors should check that any documentation matches their cabinet and board revision before using it for maintenance. For readers exploring the game's history, the manual provides an operator's counterpart to the sales pitch.

Why these artefacts belong together

Zaxxon's angled graphics matter because they make height something the player must act upon. The flight-style control, the altimeter and the need to align shots give the visual effect a practical role. Judging depth is part of surviving the next obstacle.

The flyer, commercial and manual let us examine that experience from outside the game as well. One promotes the product, another presents it in motion, and the last documents the equipment. Their value lies in the connection between them. They preserve a game as something sold, played and maintained, rather than as a screenshot alone.
