Commodore Amiga 500 Teardown

Published 11 November 2017

x

This is a teardown of the classic Amiga 500. Starting at the expansion card, EEVblog unscrewed this delight and bringing it back to life again at the end. There are closeups of Fat Agnus, Paula, Denise and Gary. And here is my biggest confession yet.... We did not know that Commodore's internal name for the A500 was the Rock Lobster.

The Complete Teardown

Source: EEVBlog Youtube channel (alternate source)

Visual Description

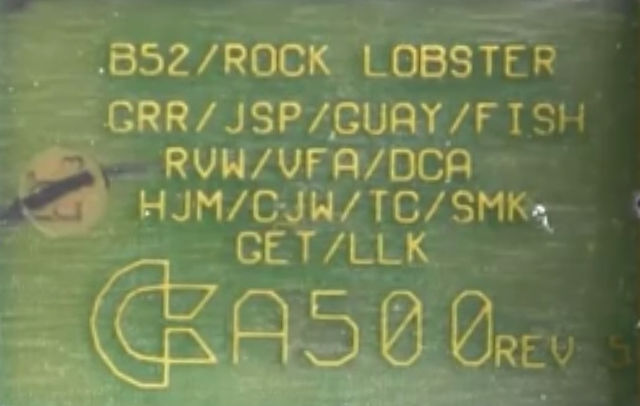

Commodore Amiga Rock Lobster motherboard codename
Amiga Motherboard codenamed Rock Lobster

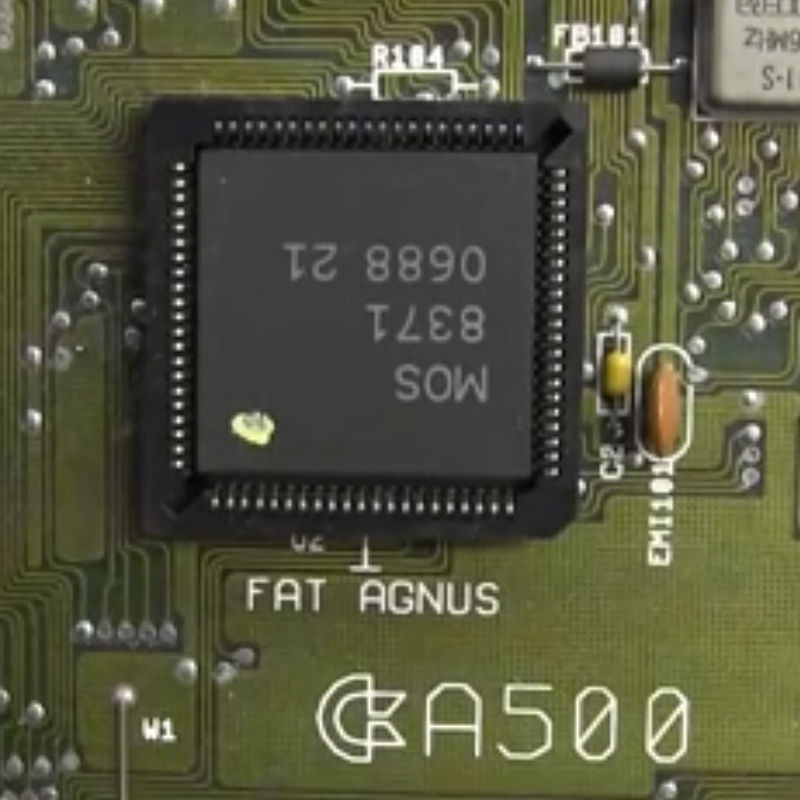

Commodore Amiga Amiga Fat Agnus Chip
Closeup view of the Fat Agnus chip
