Introduction
The Commodore C65 is designed to be an entry-level microcomputer designed for the home or student market. The market in the 1990s may still have capacity for an 8-bit microcomputer priced below the 16/32-bit WinTel personal computer range. The Commodore C65 can also support and built on the existing market of microcomputer games and applications already developed in the 1980s, since the introduction of the PET, VIC-20 and C64 microcomputers.
This document is a System Specification that gives a structured description of the Commodore C65 microcomputer in high-level technical terms. This document is considered to be at a preliminary stage to descrive the system for Pilot Production. The enthusiast/maker will need to make changes to the concept design and specifications in order to create a working prototype.
What is a System Engineering Plan?
A system engineering plan for the Commodore C65 would typically outline the technical specifications and requirements for the design and development of the computer system. It would include details on the hardware components such as the processor, memory, storage, input/output devices, and any other necessary peripherals. The plan would also specify the software requirements, including the operating system and any programming languages or applications that would be supported on the system.
The plan would describe the intended use cases for the system and the target market segment, as well as any unique features or capabilities that would differentiate it from other computer systems on the market. It would also include details on the development process, including testing, quality assurance, and compliance with industry standards and regulations.
In the case of the Commodore C65, the system engineering plan would have outlined the technical specifications for the computer, which was intended to be a more advanced and powerful successor to the popular Commodore 64. The C65 was designed to be compatible with the existing software library for the C64, while also offering improved graphics and processing capabilities.
The system engineering plan would have also outlined the intended market for the C65, which was aimed at the home and small business market segments. The plan would have described the unique features of the C65, such as its advanced graphics capabilities and support for multitasking, as well as its compatibility with existing software and peripherals.
Ultimately, while the Commodore C65 never made it to market, the system engineering plan would have provided the blueprint for the development of the system and served as a guide for the engineering team. The plan would have ensured that the technical specifications and requirements for the C65 were clearly defined and that the system was designed to meet the needs of its intended market segment.
Who were the orginal developers of the Commodore C65 engineering specification?
Systems engineering design and technical management was held in house. The following people made significant contributions to this prototype project:
- Fred Bowen - System Software - C65
- Paul Lassa - Hardware Engineer - C65, DMAgic
- Bill Gardei - LSI engineer - 4567, FDC
- Victor Andrade - LSI engineer - 4510
- Included are contributions by contractors hired by Commodore for the C65 project. These contributions include the DOS, Graphics, Audio, and Memory management areas.
Commodore C65 design outline
This specification describes the requirements for a low-cost 8-bit microcomputer system with excellent graphic capabilities. This section describes the overall Commodore C65 system concept, an overview of the system items, components and general design risks and concerns. It is envisaged that Commodore C65 will become the early 1990 market leaders in entry level microcomputers. This introduction covers the following topics;
- System concept
- System overview
- System components
- System concerns
- System maps
System Concept
The C65 microcomputer is a low-cost, versatile, competitive product designed for the international home computer and game market.
The C65 is well suited for first time computer buyers, and provides an excellent upgrade path for owners of the commercially successful C64. The C65 is composed of concepts inherent in the C64 and C128.
The purpose of the C65 is to modernize and revitalize the 10 year old C64 market while still taking advantage of the developed base of C64 software. To accomplish this, the C65 will provide a C64 mode of operation, offering a reasonable degree of C64 software compatibility and a moderate degree of add-on hardware and peripheral compatibility. Compatibility can be sacrificed when it impedes enhanced functionality and expandability, much as the C64 sacrificed VIC-20 compatibility.
It is anticipated that the many features and capabilities of the new c65 mode will quickly attract the attention of developers and consumers alike, thereby revitalizing the low-end home computer market. The C65 incorporates freatures that are normally found on today's more expensive machines, continuing the Commodore tradition of maximizing performance for the price. The C65 will provide many new opportunities for third party software and hardware developers, including telecommunications, video, instrument control (including MIDI), and productivity as well as entertainment software.
Digital Hardware Concept
CPU - Commodore CSG4510 running at 1.02Mhz or 3.5Mhz
- New instructions, including Rockwell and GTE extensions
- Memory Mapper supporting up to 1 Megabyte address space
- R6511-type UART (3-wire RS-232) device, programmable baud rate (50-56K baud, MIDI-capable) , parity, word size, sync and async. modes. XD/RD wire ORed/ANDed with user port
- Two CSG6526-type CIA devices, each, with 2 I/O ports, programmable TOD clocks, interval timers, interrupt control
Memory
-
RAM - 128Kb (DRAM)
Externally expandable from additional 512K bytes to 4MB using dedicated RAM expansion port. -
RAM - 128Kb
C64 Kernel and BASIC 2.
C65 Kernel, Editor, BASIC 10.0, ML Monitor (like C128)
DOS v1O- (1581 subset)
Multiple character sets: 40 and 80 column versions
National keyboards/charsets for foreign language systems
Externally expandable by conventional C64 ROM cartridges via cartridge/expansion port using C64 decodes
Externally expandable by additional 128K bytes or more via cartridge/expansion port using new system decodes -
DMA - Custom DMAgic controller chip built-in
Absolute address access to entire 8MB system map, including I/O devices, both ROM & RAM expansion ports
List-based DMA structures, can be chained together
Copy (up, down, invert), Fill, Swap, Mix (boolean Minterms) Hold, Modulus (window), Interrupt, and Resume modes
Block operations from 1 byte to 64K bytes
DRQ handshaking for I/O devices
Built-in support for (optional) expansion RAM controller
Video - Commodore CSG4567 enhanced VIC chip
- RGBA with sync on all colors or digital sync
- Composite NTSC or PAL video, separate chroma/luma
- Composite NTSC or PAL digital monochrome
- RF TV output via NTSC or PAL modulator
- Digital foreground/background control (genlock)
-
All original C64 video modes:
40x25 standard character mode
Extended background color mode
320x200 bitmap mode
Multi-color mode
16 colors
8 sprites, 24x21 - 40 and 80 character columns by 25 rows: Color, blink, bold, inverse video, underline attributes
-
True bitplane graphics:
320 X 200 X 256 (8-bitplane) non-interlaced
64 X 200 X 16* (4-bitplane) non-interlaced
1280 X 200 X 4* (2-bitplane) non-interlaced
320 X 400 X 256 (8-bitplane) interlaced
640 X 400 X 16* (4-bitplane) interlace
1280 X 400 X 4* (2-bitplane) interlace
*plus sprite and border colors -
Color palettes:
Standard 16-color C64 ROM palette
Programmable 256-color RAM palette, with
16 intensity levels per primary color (yeilding 4096 colors) - Horizontal and vertical screen positioning verniers
- Display Address Translator (DAT) allows programmer to access bitplanes easily and directly.
- Access to optional expansion RAM
- Operates at either clock speed without blanking
Audio - Commodore CSG8580 SID chip
-
Stereo SID chips:
Total of 6 voices, 3 per channel
Programmable ADSR envelope for each voice
Filter, modulation, audio inputs, potentiometer
Separate left/right volume, filter, modulation control
Disk, Printer support
- FDC custom MFM controller chip built in, with 512-byte buffer, sector or full track read/write/format, LED and motor control, copy protection.
- Built-in 3.5" double sided, 1MB MFM capacity drive
- Media & file system compatible with 1581 disk drive
- Supports one additional "dumb" drive externally
- Standard CBM bus serial (all modes, about 4800 baud)
- Fast serial bus (C65 mode only, about 20K baud)
- Burst serial (C65 mode only, about 50K baud)
External Ports
- 50-pin Cartridge/expansion port (ROM cartridges, etc.)
- 24-pin User/parallel port (modem (1670), RS-232 serial)
- Composite video/audio port (8-pin DIN)
- Analog RGB video port (DB-9)
- RF video output jack
- Serial bus port (disks (1541/1571/1581), printers, etc.)
- External floppy drive port (mini DINS)
- 2 DB9 control ports (joystick, mouse, tablets, lightpen)
- Left and right stereo audio output jacks
- RAM expansion port, built-in support fo^ RAM controller
Keyboard - 77 keys, including standard C64 keyboard plus:
- Total of 8 function keys, F1-F16, shifted and nonshifted
- TAB, escape, ALT, CAPS lock, no scroll, help (F15/16)
- Power, disk activity LEDs
- Reset button
Power supply - external, brick type
- +5VDC at 2.2A and +12VDC at 0.85A

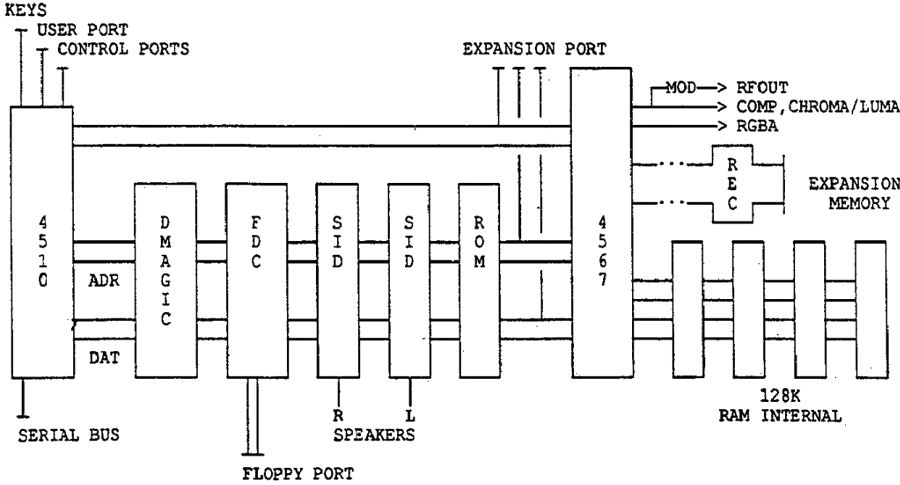

C65 System Components

- Microcontroller: 4510 (65CE02, 2x6526, 6511 UART, Mapper, Fast serial)
- Memory: 4464 DRAM (128K bytes); 271001 ROM (128K bytes)
- Video controller: 4567 (extended VIC, DAT, PLA)
- Audio controllers: 6581 (SID)
- Memory control: 41xx-F018 (DMA)
- Disk controller:) 41xx-F011 (FDC, support 2 DSDD drives, MFM, RAM buffer
