Yamaha PSR-530 Arranger Keyboard

Updated 4 October 2021

The Yamaha PSR-530 is a vintage arranger keyboard that is still useable as a fully-fledged musical instrument, an entry level keyboard, or as a MIDI keyboard. This webpage is my notebook on the Yamaha PSR-530 arranger keyboard. I will add notes that I find interesting on the Yamaha PSR-530 and hopefully build up a small knowledge base for this arranger keyboard.

Yamaha PSR-530 Arranger Keyboard
image  Yamaha PSR-530 Arranger Keyboard

About the Yamaha PSR-530 arranger keyboard

The Yamaha PSR-530 arranger keyboard is a great sounding musical instrument that has a wide variety of sounds and features. You can play a great piano sound just by turning the keyboard on and playing the keyboard in beautful stereo. There is an option to expand the keyboard with a sustain pedal or use the keyboard as a MIDI keyboard. I have been using a free Linux sequencer to play MIDI files through the instrument. Currently, I am using Linux Rosegarden as my music sequencer to control the MIDI instruments on my Yamaha PSR-530 keyboard. I have also had success with using MuseScore on Linux to play scoresheets on my Yamaha PSR-530 as well.

Yamaha PSR-530 Features

Yamaha PSR-530 Review and Analysis

Yamaha PSR-530 Voices

The Yamaha PSR-530 has 200 voices, or musical instruments. The Yamaha PSR-530 has 8 drum kit styles. This is a useful range for any standard musical instrument selection that may used in a band. The standard MIDI voices are all here and sound good. There is also the full selection of Yamaha XG voices available. Do not make the same mistake that I did and assume that these are different voices. The voice set overlaps, for example, the GM MIDI grand piano is the same as the XG grand piano. The grand piano sounds different because the have different digital effects applied. Some musicians may find the selection limited in the synthesizer department. This is an arranger keyboard and does not have synthesizer capability.

Notebook

Yamaha Music Cartridge

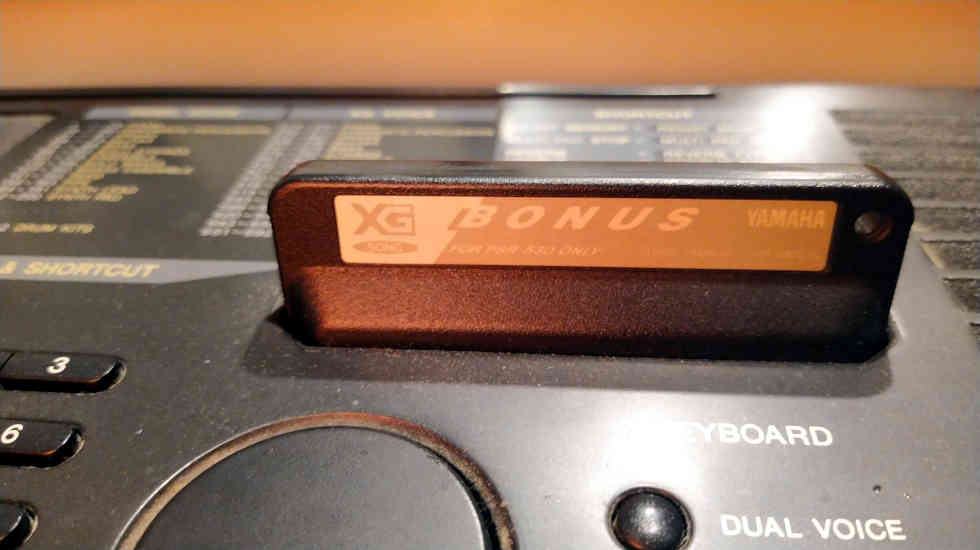

Yamaha PSR-530 Bonus Mudic Cartridge Close up

General problems discussed on the Internet

Problem: My data is lost every time I turn off the PSR-530

Some users have complained that batteries need to be installed in the Yamaha PSR-530 arranger keyboard even when one is running directly from the mains power adaptor. This appears to be because the keyboard uses the batteries to save the volatile memory for the user settings and memory banks. Some people feel that the cartirdge also needs to draw power directly from the batteries when it is used.

I installed fresh batteries when I bought the keyboard and so I can't confirm if the Yamaha PSR-530 arranger has troubles running without the batteries. I would not be surprised if this is the case though. The user manual does not make any references to changing button batteries or other common battery types to maintain the user memory.

It is normal operation for all PSR-530 panel settings to reset to their initial settings whenever the power is turned on, except for:

The Yamaha PSR-530 user manual does give the warning on page 12 that, "plugging or unplugging the AC power adaptor while the batteries are installed will reset the PSR-530 to the defaults."

How do I do a factory reset on the Yamaha PSR-530?

The piano style keys on the keyboard also act as a classic computer keyboard for certain factory functions. The most common factory function that users may use is the factory reset function. The Yamaha PSR-530 factory reset function can be accessed by following a simple procedure. The Yamaha PSR-530 factory reset procedure restors data and other settings to the factory preset condition. Perform a factory reset on the Yamaha PSR-530 involves pressing the red power button while holding the highest (rightmost) white key on the keyboard. You know that you are successfully perfoming a factory reset when "e;CLr:Back up" briefly appears on the user display. on the Yamaha PSR-530

Users report the power supply input coming loose

I have not directly experienced this issue myself, however, I have read on forums that the power supply and sometimes even the left output jack terminals come loose. I would not be suprised if this is a common issue as the terminals and in particular the cables hang unsupported out the back of the keyboard case.

What is GM System Level 1?

GM System Level 1 is an addition to the MIDI standard which ensures that any GM-compatible music data can be accurately played on any GM-compatible tone generator, regardless of the manufacturer. The GM mark is added to all software and hardware products that support the GM System Level 1. More information about this standard can be found at the official website, General MIDI 1 (GM1) specification.

What is MIDI XG?

XG is a MIDI format created by Yamaha which significantly improves and expands upon the GM System Level 1 standard by providing a greater variety of high quality voices plus considerably enhanced effect operation while being fully compatible with GM. More information can be found in the official documentation, Yamaha XG Format specification.

Yamaha PSR-530 Resources
